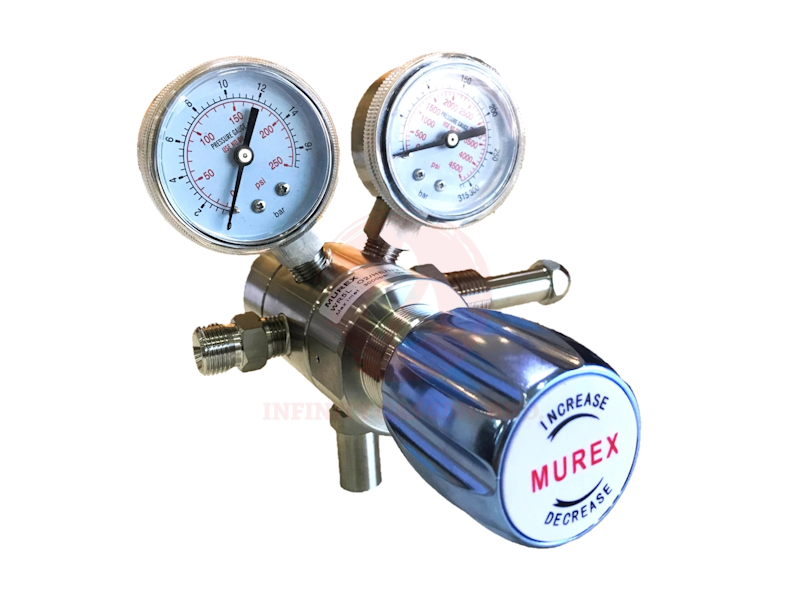

Two-Stage Regulator (Stainless Steel 316L Body)

Two-Stage Regulator (Stainless Steel 316L Body)

  • Stainless steel 316L body, including stem and spring.
  • Stainless steel inlet filter.
  • Stem type seat assembly for more reliable performance.
  • 2 gauges for easy reading.
  • Regulators verified by ECM, European standard EN ISO 2503:2009 and related to CE Directive 2014/68/EU (Pressure Equipment).

Product Description


Specification UNIT FLW-GAR-O2-TSSS
Gas Service - O2, N2, He, Ar, AIR
Max. Inlet Pressure PSI 3000
Max. Delivery Pressure PSI 200
Inlet Pressure Gauge PSI 2" 4500
Outlet Pressure Gauge PSI 2" 250
Flow Rate L/Min 450
Inlet Connection BSP 5/8"
Outlet Connection RH 3/8
Weight KG 2.0


Specification UNIT FLW-GAR-O2-TSSS
Gas Service - O2, N2, He, Ar, AIR
Max. Inlet Pressure PSI 3000
Max. Delivery Pressure PSI 200
Inlet Pressure Gauge PSI 2" 4500
Outlet Pressure Gauge PSI 2" 250
Flow Rate L/Min 450
Inlet Connection BSP 5/8"
Outlet Connection RH 3/8
Weight KG 2.0
